Electric Boat Doors Drive Motor M1502

Name: Electric Boat Doors Drive Motor M1502
Brand: SENINTER
Price: 1 USD

China Electric Boat Doors Drive Motor M1502 wholesale

IP Rating : IP55/IP65

Certification : CE ROHS

Rated Speed : 115/95RPM

Model Number : M0701

Rated Power : 110W/20W

Communication Protocol : CAN

Brand Name : SENINTER

Rated Voltage : 24VDC

Place of Origin : CHINA

Rated Torque : 9.6/2N.m

Contact Now

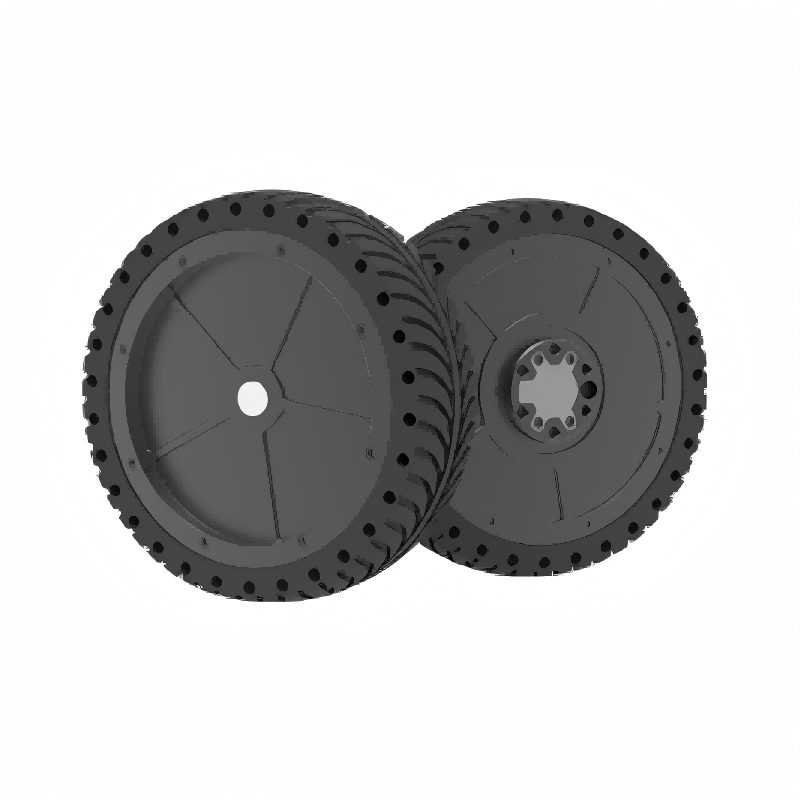

M1502 Series – Electric Door Actuator Motors for Yachts, Drive Wheel Motors for Lawn Mowers, and Chassis Motors for Camera Dollies & Mobile Robots

Ultra-low noise, high precision, and zero backlash ensure quiet and accurate operation. The direct-drive system delivers fast response with zero latency. Long service life is achieved thanks to high-quality bearings, while the compact structure allows for a large hollow shaft design. The simple, highly integrated design uses relatively few components, eliminates mechanical friction in the transmission, and achieves a transmission efficiency close to 100%.

Electric Boat Doors Drive Motor M1502

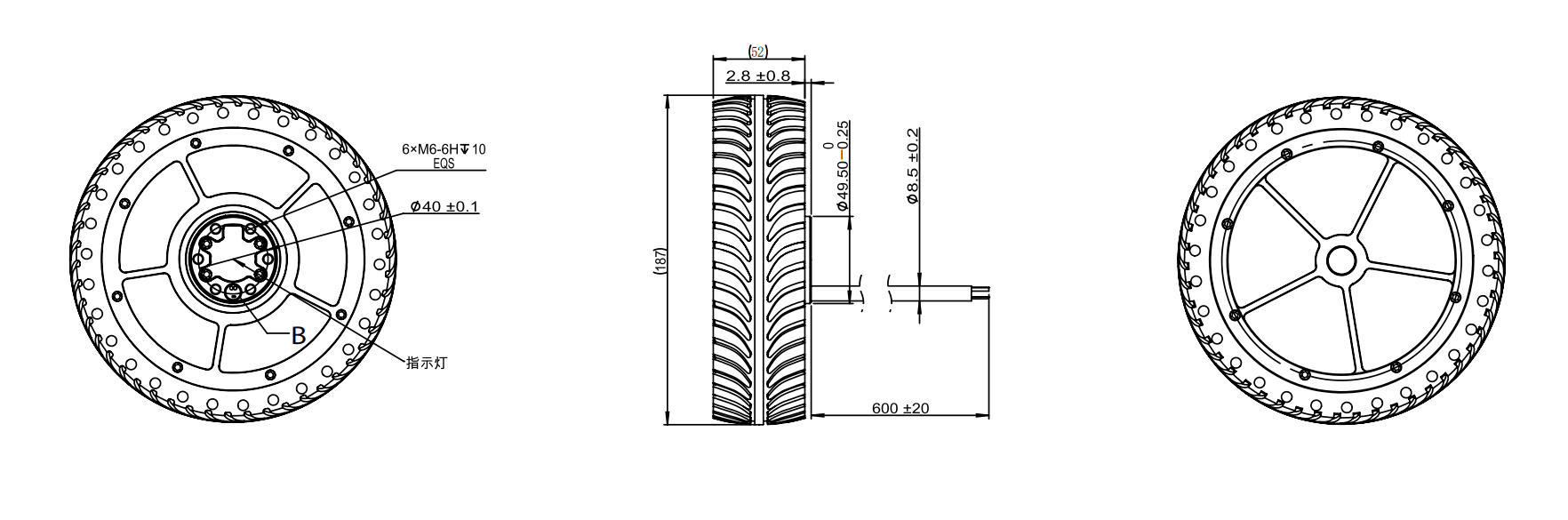

Dimension Drawing(Model 1)

Electric Boat Doors Drive Motor M1502

Dimension Drawing(Model 2)

Electric Boat Doors Drive Motor M1502

Motor Technical Parameters

Parameter	Unit	Model 1	Model 2
Overall Dimension	mm	Φ187×52	Φ144×41.83
Rated Voltage	VDC	24	24
Rated Power	W	110	20
Rated Torque	N·m	9.6 (S2 Duty Cycle)	2
Stall Torque	N·m	17	10
Rated Speed	rpm	115	95
No-load Speed	rpm	200	210
Rated Current	A	11.5	1.5
Stall Current	A	21	17
Module Mass	g	3000	1860
Noise Level	dB	≤52	≤52
Encoder Resolution	bit	14	14
Communication Protocol	—	CAN Bus	CAN Bus
IP Rating	—	IP55	IP65
Insulation Class	—	B	B
Withstand Voltage	VAC/Hz	600/50	600/50
Operating Temp.	℃	-20~45	-20~45
Operating Humidity	%	＜85	＜85
Storage Temp.	℃	-20~65	-20~65
Storage Humidity	%	＜85	＜85

Motor Characteristic Curve(Model 1)

Electric Boat Doors Drive Motor M1502

Motor Characteristic Curve(Model 1)

Electric Boat Doors Drive Motor M1502 Images
